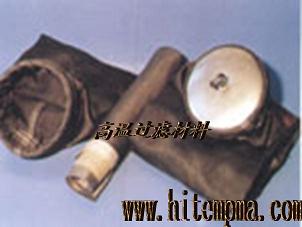

It is a woven glass fabric with special finish. As an ideal filtration material resistant to high temperature and    corrosion, it has been widely used for industrial dust collection, precious material recovery and atmospheric       pollution control.

    The material can be used at 280℃ for long time,with good chemical resistance and thermal stability.At 300℃,glass fibers exhibit nearly zero shrinkage,good condensation resistance and dust peeling behavior with low        energy consumption for clean-down.

Properties and Specifications:

Product Code		CWF300	CWF300A	CWF450	CWF500	EWF600	EWF600A
Weave		Twill	Cross Twill	Twill	Weft Double	Weft Double	Large Twill Weft Double
Count		20×16	20×16	20×14	20×20	20×20	20×20
Weight(g/m2)		≥320	≥320	≥450	≥530	≥600	≥600
Mullen Bursting Strength(N/cm2)		≥190	≥190	≥230	≥280	≥400	≥400
Tensile Strength (N/25mm)	Warp	≥1200	≥1200	≥1700	≥1700	≥2400	≥2400
	Weft	≥1000	≥1000	≥1200	≥1700	≥2400	≥2400
Air permeability (cm3/cm2.s)		35～55	5～15	35～55	35～55	20～40	5～20
