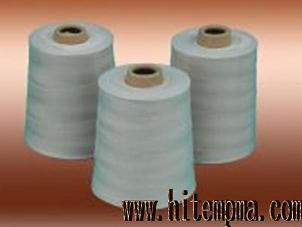

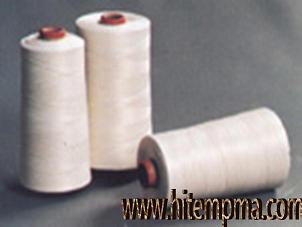

Fiberglass Sewing Thread
PostTime:2010-8-27  Text 〖 B M S 〗  Reads:12826   [Close]
      Fiberglass sewing thread is made of many ply fiberglass yarn treated with PTFE after high twist      compound.

      It features high tensile strength, good sewing property and high temperature resistance. It is widely used in    sewing high temperature weave.

Specifications:
      132tex,150tex,176tex,200tex,264tex,300tex,400tex.

Fiberglass Sewing Thread

 Code No.
Filament
Dia.(μm)
 Twists direction
 Twists(T/M)
 tex
 >=N(kgf)
 qualified
 first-class
 EC6-12.5×3×4Z
6.0
 Z
≥280
150
≥ 73.5(7.5)
 ≥88.3(8.5)
 EC6-12.5×2×6Z
6.0
 Z
 ≥280
150
≥ 68.6(7.0)
 ≥83.3(8.5)
 EC6-12.5×3×5Z
6.0
 Z
 ≥280
185
 ≥78.4(8.0)
 ≥88.2(9. 0)
 EC6-12.5×4×4Z
6.0
Z
≥280
200
≥93.1(8.0)
≥111.8(9. 0)



Applications:
     Used for sealing and insulating products.
     Perfect for safety clothing and gloves.
